You do not own the ground your dock stands on here — you lease it from the City of Jacksonville, and the City's lake rules decide how far out you can go, how tall it can be, and whether a retaining wall is even legal. Those rules are the starting point of every job on this lake.
No river authority. No Corps of Engineers. A leasehold lake with its own written rulebook.
Lake Jacksonville is owned outright by the City of Jacksonville — the water and the land around it. More than 500 building areas on the shoreline are held on 99-year leases, and a lease transfer requires City Council approval. That single fact changes how a project starts. Before anything gets designed, the lease and the platted lot boundaries have to be established, because the City puts that burden squarely on the lessee: plans for a boathouse, dock or fishing pier must show property corners and lot lines, and the lessee is responsible for accurately locating those platted boundaries before plans are submitted.
From there it is a single-track process. The City Building Official issues the Building Permit for every boathouse, dock, pier and retaining wall on the lake. Construction may not begin until that permit is in hand, and the permit has to be posted in a visible location at the work site before work starts. There is no separate shoreline application and no federal review layered on top for ordinary residential work.
Where a project needs relief from a dimensional rule, the path runs through the Building Official to the seven-member Lake Jacksonville Rules and Regulations Advisory Board, with a $100 application fee and a scheduled hearing. It is worth understanding what that buys: the Board is advisory only, and the City Council is not bound by its recommendation. A variance is a real option on this lake, but it is not a formality, and the schedule needs to allow for it.
Shoretech reads the rules for your specific lot type first — waterfront lease lot, non-shoreline lease lot, or a lot in the Concession Area, which runs on its own looser setback and is the only place on the lake where a habitable structure may be built over the water. What can be drawn follows from that answer, not the other way around.
These are not guidelines. They are the dimensions a plan has to hit before the Building Official will stamp it, and they are the reason a design that worked on a neighboring lake often will not work here.
A structure may extend no more than 50 feet from the normal shoreline, which the rules define as the water's edge at elevation 422 feet NGVD. If there is less than five feet of water at 50 feet, the Building Official may let the structure reach out until five feet of water is found — but only with a majority vote of a quorum of the City Council finding no adverse impact on adjoining lots, and in no event beyond 75 feet. On the steeper points that is rarely needed; in the shallow backs of coves it is the whole conversation.
Every lot fronting the lake, leased or not, carries two imaginary lines running parallel to and six feet either side of any side lot line extension. Nothing gets built in that corridor. In the Concession Area the same zone tightens to 2.5 feet. On a narrow lot, this rule — not the 50-foot limit — is usually what sets the width of the boathouse.
No dock, pier or boathouse may have an eave or sidewall height more than 12 feet above normal pool. That is a real constraint on roof pitch, on second-level sun decks, and on lift clearance for a tall boat — and it is far better to design to it from the first sketch than to redraw a plan after review.
This is the rule that catches contractors from off the lake. Retaining walls are permitted at the lessee's expense, but they shall not modify the existing natural shore line and can not be used to increase lot size, and none may be built without the prior written consent of the City Building Official. A conventional fill-behind bulkhead that advances the bank is simply not on the table at Lake Jacksonville. A wall that holds the existing bank in place is.
A stable lake, hard ground for pile, and a rulebook that rewards a design drawn to the limits rather than trimmed back to them afterward.
One boathouse per lot, inside the 50-foot reach, clear of the six-foot No Construction Zone, and under the 12-foot eave cap. Open-gable cooling, lifts, lighting and a storm-rated substructure — designed to the ordinance dimensions from the first drawing.

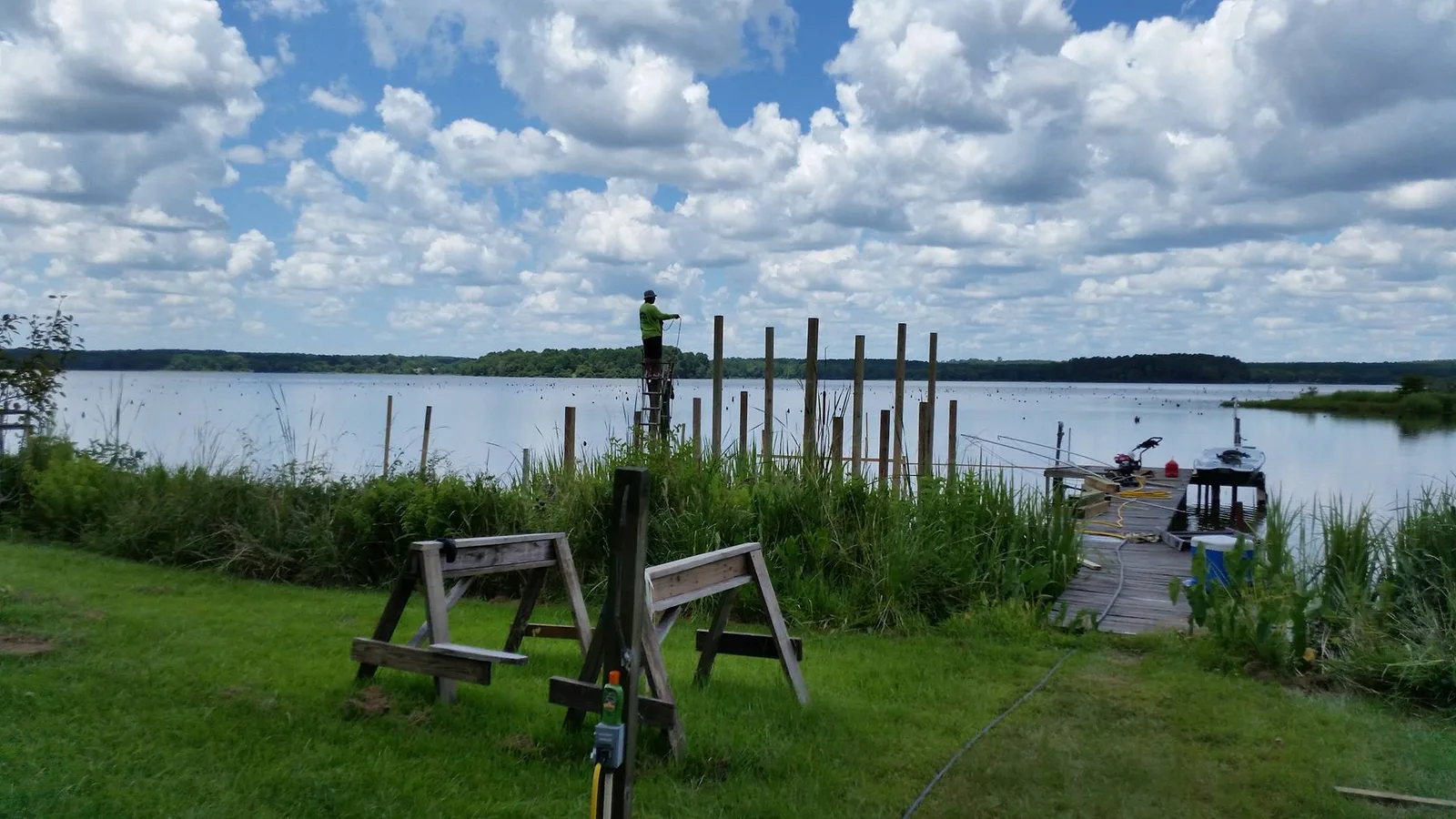

With roughly three feet of annual fluctuation, fixed timber and steel piers built tight to the 422-foot waterline make sense here. Where the water is shallow at 50 feet, we document the depth so the Council extension can be asked for with evidence rather than hope.
The steeper topography around this lake makes bank retention a real need. Galvanized steel, vinyl, FRP composite or heavy timber — engineered to stabilize the natural shoreline in place, not to advance it, and built only on the Building Official's prior written consent.
Where a slip has silted in, hydraulic dredging pumps material for backfill reuse instead of trucking it out. On a lake where the structure cannot be pushed farther into the water, restoring depth at the existing structure is often the practical answer.
The lake association describes the waterfront as virtually sold out, with far more permanent residences now than the original weekend camps.
Lake Jacksonville impounds Gum Creek, a tributary of the Neches River, behind Buckner Dam in Cherokee County, roughly half a mile to three miles southwest of Jacksonville off US 79 and FM 747. Dam construction began in February 1956 and Buckner Dam was completed in August 1957. The lake reaches 62 feet deep. Published surface acreage genuinely disagrees — TPWD gives about 1,320 acres, the City's own lake rules say about 1,325, and the TWDB 2006 volumetric survey measured 1,164 acres at conservation pool — so no single number should be treated as definitive. Normal pool is 422 feet NGVD, level with the top of the concrete spillway, with about three feet of annual fluctuation; the emergency spillway sits at 431 feet, and the City disclaims liability for any improvement built below 432 feet msl. Around the shoreline the substrate is unusually good to work in: abundant iron ore rock on the points, riprap along the dam face, sandy loam over red clay on the banks, mixed hardwood and pine above. Aquatic vegetation is sparse after a long-running hydrilla management program. Public access centers on the City-run Lake Jacksonville Recreation Area — boat ramps, mooring docks, a self-serve fueling station, a swimming pier, restrooms, trailer turnaround and parking, recently expanded under a Texas Parks and Wildlife grant — plus City camping areas and a concession marina with lighted piers. No public ramp, marina, dock or floating fishing pier may sit within 1,000 feet of the raw water intake, and all recreation is barred within 200 feet of it.
No. The City's lake rules allow retaining walls at the lessee's expense, but they “shall not modify the existing natural shore line and can not be used to increase lot size,” and none may be built without the prior written consent of the City Building Official. A conventional fill-behind bulkhead that advances the bank is not available on this lake. What is available is a retaining wall that holds the bank exactly where it already is.
Fifty feet from the normal shoreline, which the ordinance defines as the water's edge at elevation 422 feet NGVD. If there is less than five feet of water at that 50-foot mark, the Building Official may allow the structure to reach out until five feet of water is found — but only on a majority vote of a quorum of the City Council finding no adverse impact on adjoining lots, and never beyond 75 feet. Legacy structures already reaching past 50 feet may be repaired, improved or expanded on application, provided the work does not push them any farther into the lake.
The City of Jacksonville Building Official. There is no river authority and no Corps of Engineers involvement in ordinary shoreline work here. Plans must show property corners and lot lines, and the lessee is responsible for accurately locating the platted boundaries before plans go in. Construction may begin only once the Building Permit is issued, and the permit has to be posted in a visible location at the work site before work starts.
Lake Jacksonville sits inside Shoretech's service area, and Dave travels as far as a project warrants across Texas and western Louisiana. One detail worth knowing about this lake: the ordinance bans commercial operation of boats, barges, rafts and docks “except approved concessionaires or any pile-driving operation” — pile driving is written in as an express exemption in two separate sections. Call 936-662-5100 to talk through your lot.
Tell Dave which lot you lease, how the bank falls away, and how much water you have at the end of the existing pier. The design — and the permit application — follows from there.
